5/6-pin SW900 color smart meter, e-scooter/mountain bike LCD data display modification part.

- Product Overview:

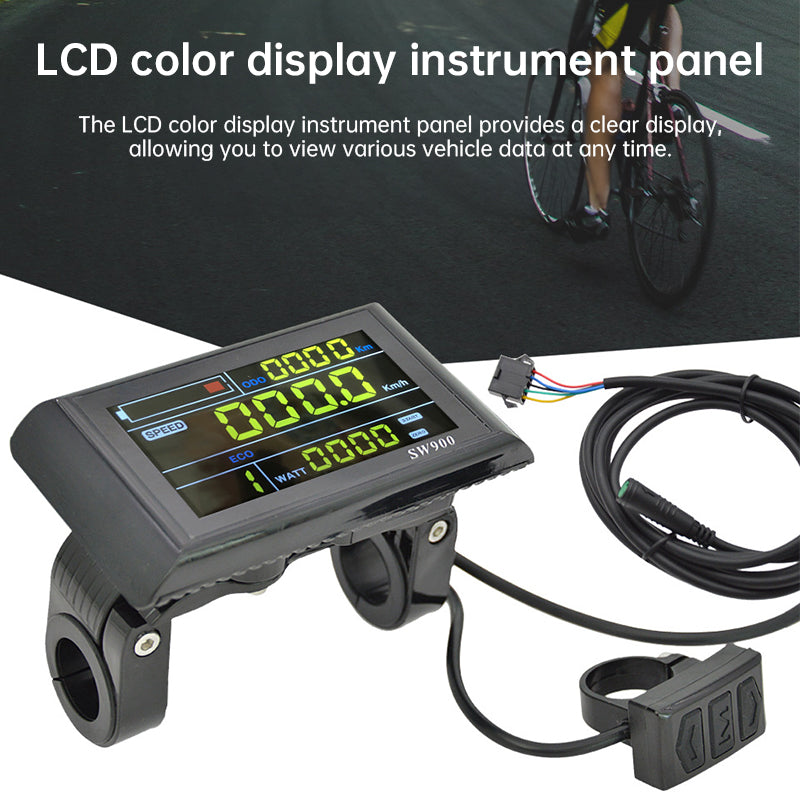

E-bike SW900 LCD Display Speed Control Panel, compatible with 24V/36V/48V, available in 5/6pin adapter cable; suitable for electric scooters and bicycles as a cycling accessory.

- Features:

- New, high-quality, durable ABS material.

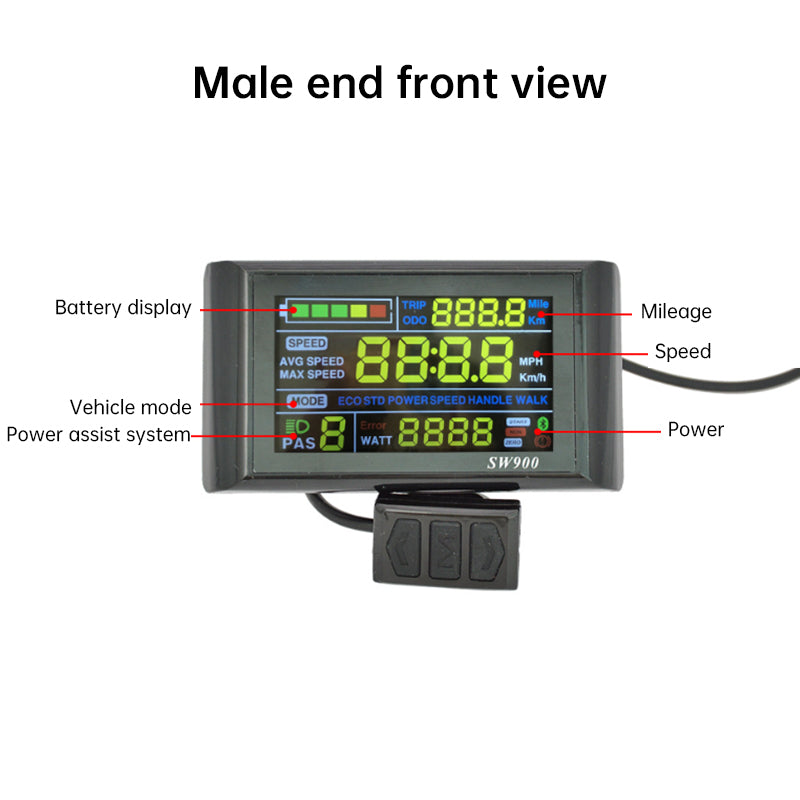

- Automatically identifies 36V/48V; shows battery charge, power consumption, and riding data (speed, time, power, temperature) on a color display.

- Clear joints for cost-effective installation; uses Agreement 2 communication protocol.

- Settings (via long-pressing up/down buttons):

- P01-P02: Backlight brightness, mileage unit (KM/MILE).

- P03-P04: Voltage level (24V/36V/48V), sleep time (0-60min).

- P05-P07: PAS levels, wheel diameter (inches), speed magnet count (1-100).

- P08: Speed limit (0-50km/h, with notes on KM/Mile conversion).

- P09-P10: Zero/non-zero start, driving mode (power-assisted/electric/coexistent).

- P11-P14: Assist sensitivity (1-24), power boost strength (0-5), power-assisted magnet type, controller current limit (1-20A).

- P15-P20: No function, ODO reset (long-press up 5s), cruise control (allowed/not), display speed scale (50%-150%), other protocol settings.

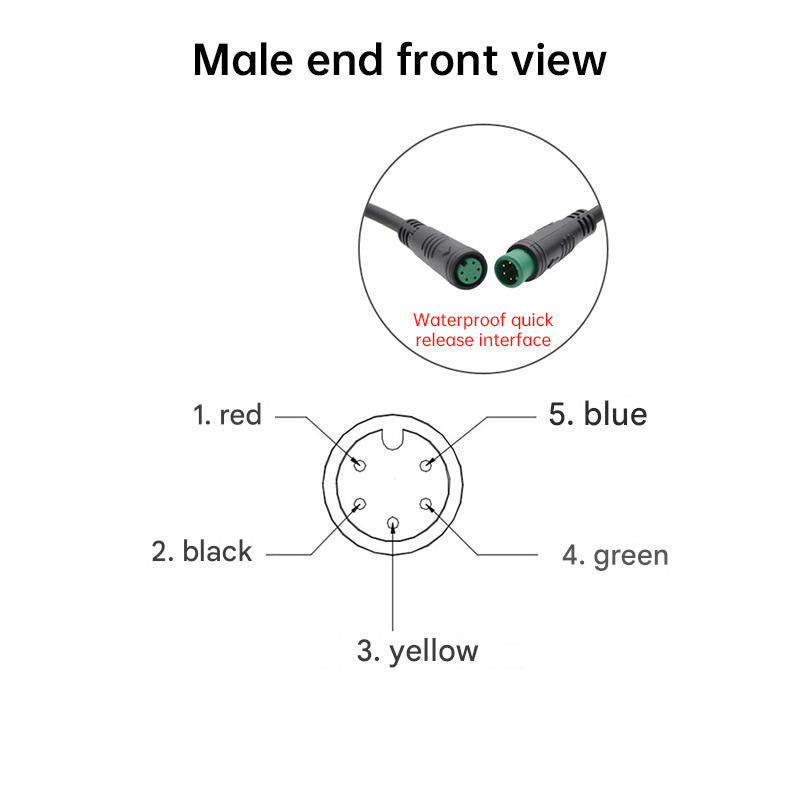

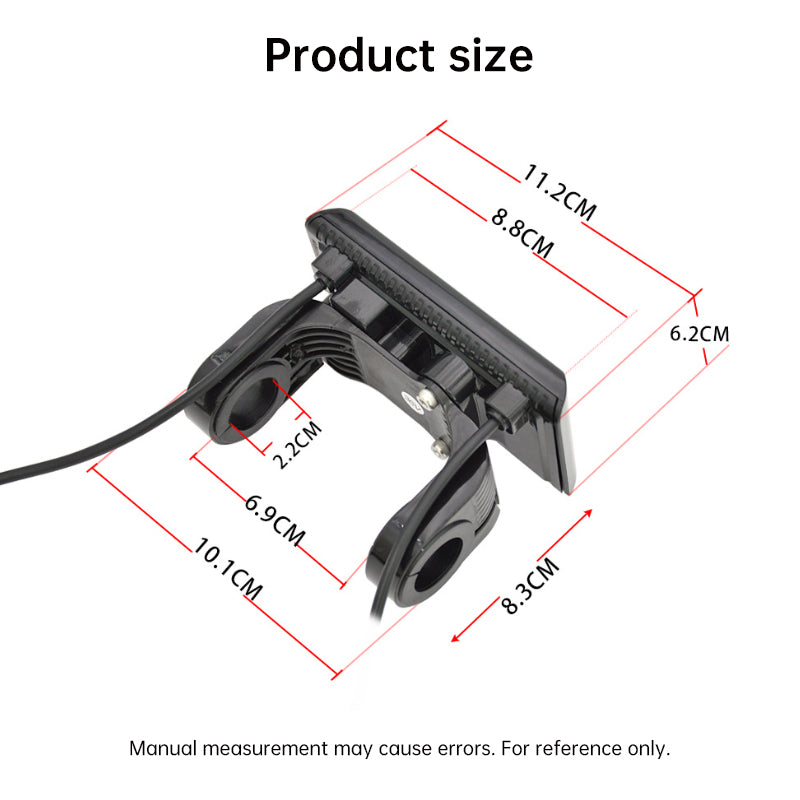

- Specifications: Material (ABS), color (black), weight (~225g), model (5pin/6pin), voltage (24-60V).

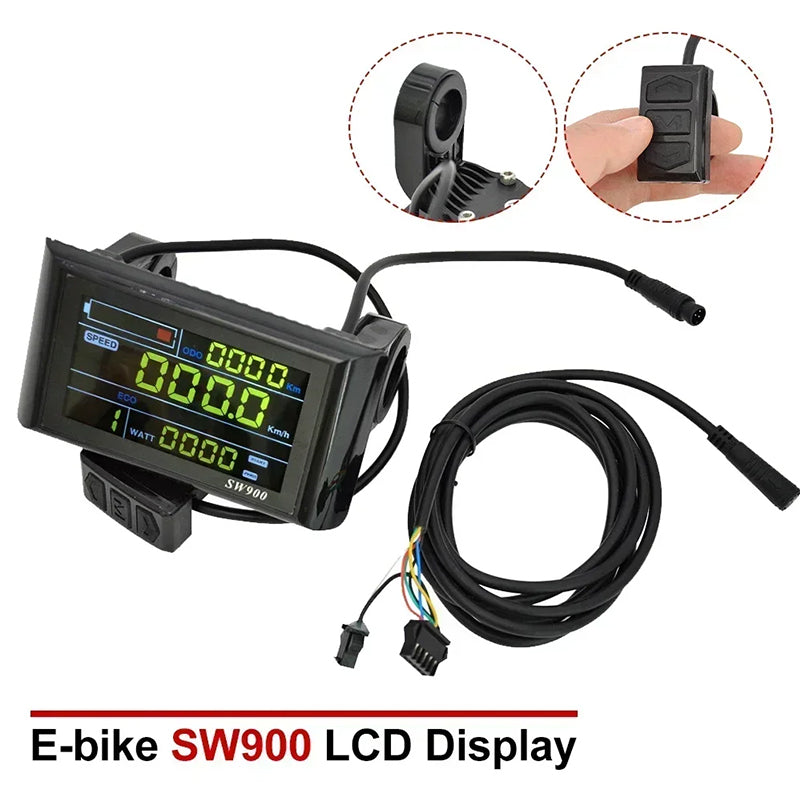

- Package Includes: 1 x LCD display, 1 x adapter cable.

Estimated Shipping Time: 7-13 Days.
